Journey Pannier Rack

Pannier mount – 32kg (12kg top + 10kg per side).
Non-pannier mount – 22kg (10kg top + 6kg per side).

Yes, there are interchangeable FitLinks that allow the Rack to fit better to a range of bikes by changing the Seatpost clamp position. This means that the top deck can be positioned horizontally to the ground for most riders.

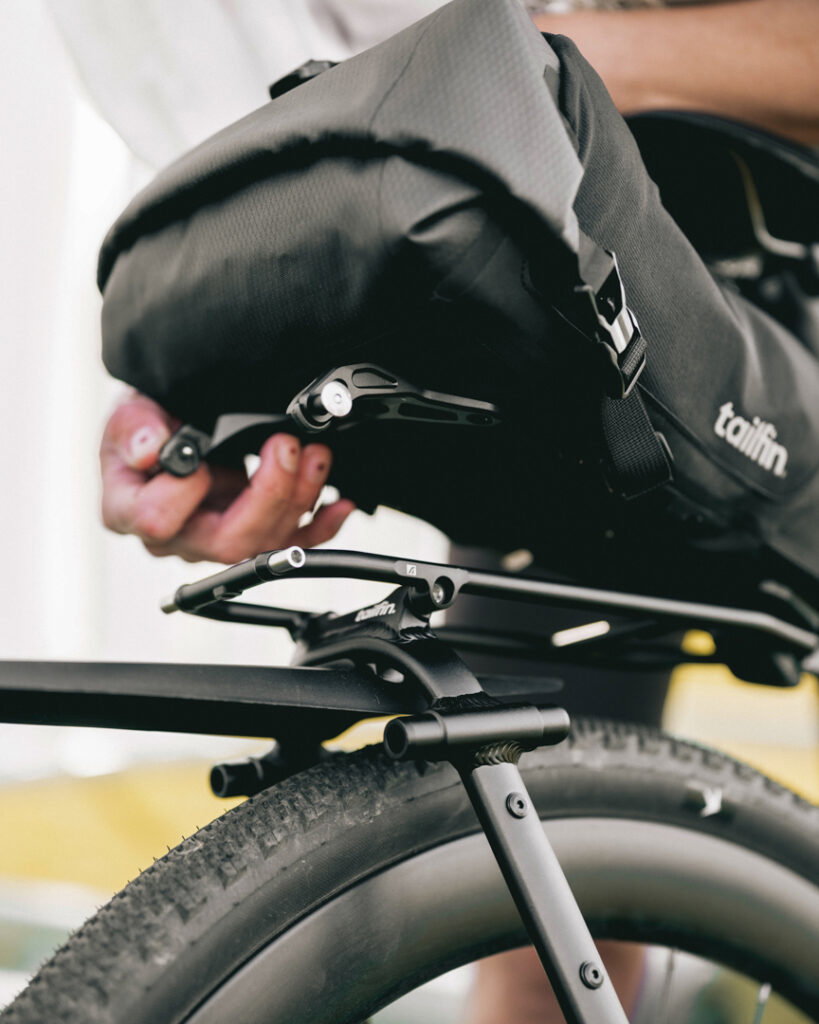

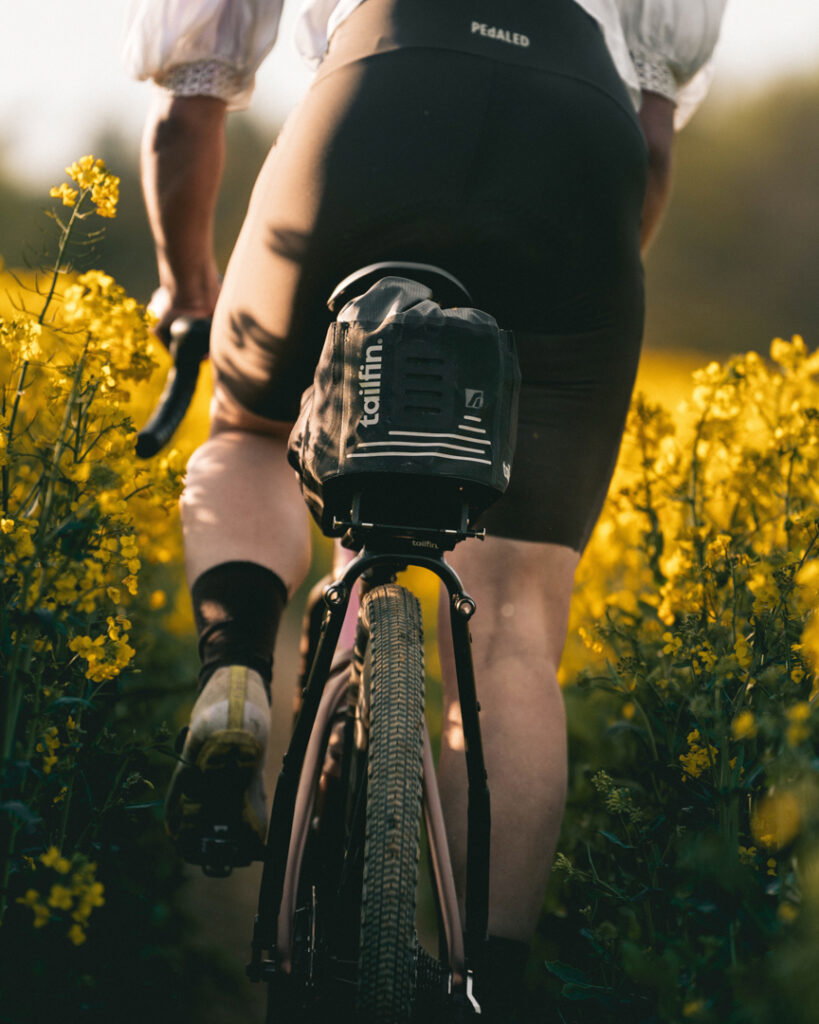

Yes, you can use your CargoPack (9kg for Gen1 CargoPack) and SpeedPack Rack Top Bags on the Top Deck of the Journey Rack.

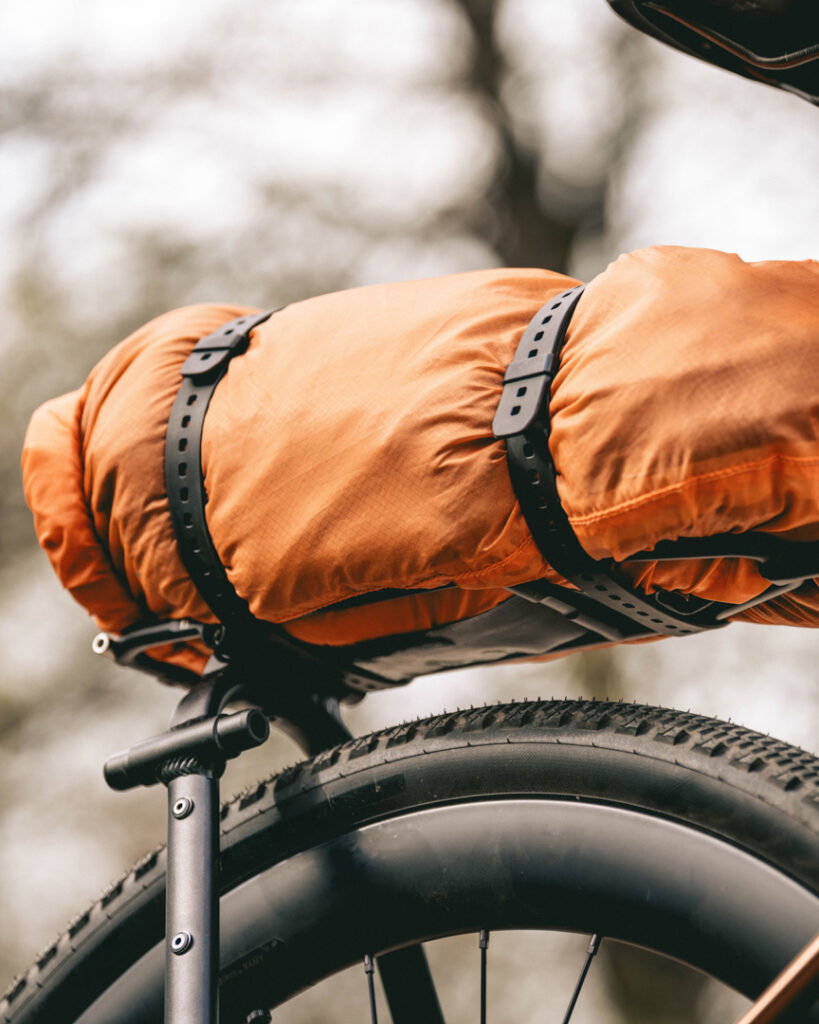

You can mount your CargoPack (9kg for Gen1 CargoPack) and SpeedPack Rack Top Bags. You can also mount your own items to the top deck of the Journey Rack, as long as they are under the respective 12kg and 10kg weight limits. Please note, when using your own bags/items, these may wear the anodising on the top deck.

Yes, it is designed to work well off-road with the Removable CargoPack and SpeedPack Rack Top Bags, Panniers and any other securely fastened items on the top deck.

Yes both options are available.

Yes, the diameter of the top deck rails is compatible with 10mm diameter pannier hooks. Alternatively, you can use our Third-Party Pannier Adaptors on the Pannier Mounts instead, leaving the top deck free to strap an additional bag/item to it without the panniers obstructing the straps. Whilst using a Tailfin CargoPack/Speedpack you cannot attach Third-party panniers to the Topstay due to potential interference. This is only possible when using the Third-Party Pannier Adaptors on the pannier mounts.

The pannier mount version of the Journey Rack works with Small and Mini Cage as it has 3-bolts. Note that you cannot fit/use a pannier while the Cargo Cages are mounted.
The non-pannier version of the Journey Rack works with all Cargo Cages, and has 4-bolts.

These attach at the underside of the top deck at the rear. We offer mounts and lights for you to stay seen when using the Journey Rack.

The mudguard is available as an additional accessory.

Assembly requires a Torx T25, and 2mm, 2.5mm, 4mm and 5mm hex/allen keys (found on most multi-tools) and you can find guidance from our Assembly guides.

For help choosing your axle, use our Axle Finder tool.

Yes. There is a screw that locks the strap onto the Seatpost Connector.

Axle + Fast Release Dropouts: Your system includes a rear axle (choice of QR or Thru Axles) to swap out on your bike, the Rack then fits to this axle in seconds, allowing it to be mounted or removed in seconds.
Frame Mount Adaptors + Fast-Release Dropouts: Your system includes mounts which screw into the frame eyelets on your frame, the rack then affixes to this mount in seconds, allowing it to be mounted or removed in seconds.
Direct Mount: The Direct mounting kit can be purchased separately as a Spare. This will mean your Journey Rack is not quick release from the bike.
We have a comprehensive mounting guide for the different options.

Yes, it is designed to pivot with the movement of your full-suspension bike. You can adjust the angle of the top deck connector to keep it away from the wheel.

29” X 2.6” (700C x 66mm) with standard/boost dropouts. It is not compatible with Super Boost hub widths or fat bikes.

Yes, it includes 2 types of top deck connector to find the best fit with your bike.

Yes, it includes 2 types of top deck connector to find the best fit with your bike.

The Journey Rack does not currently work with 32” bikes.

Yes, this is available as a Spare.
